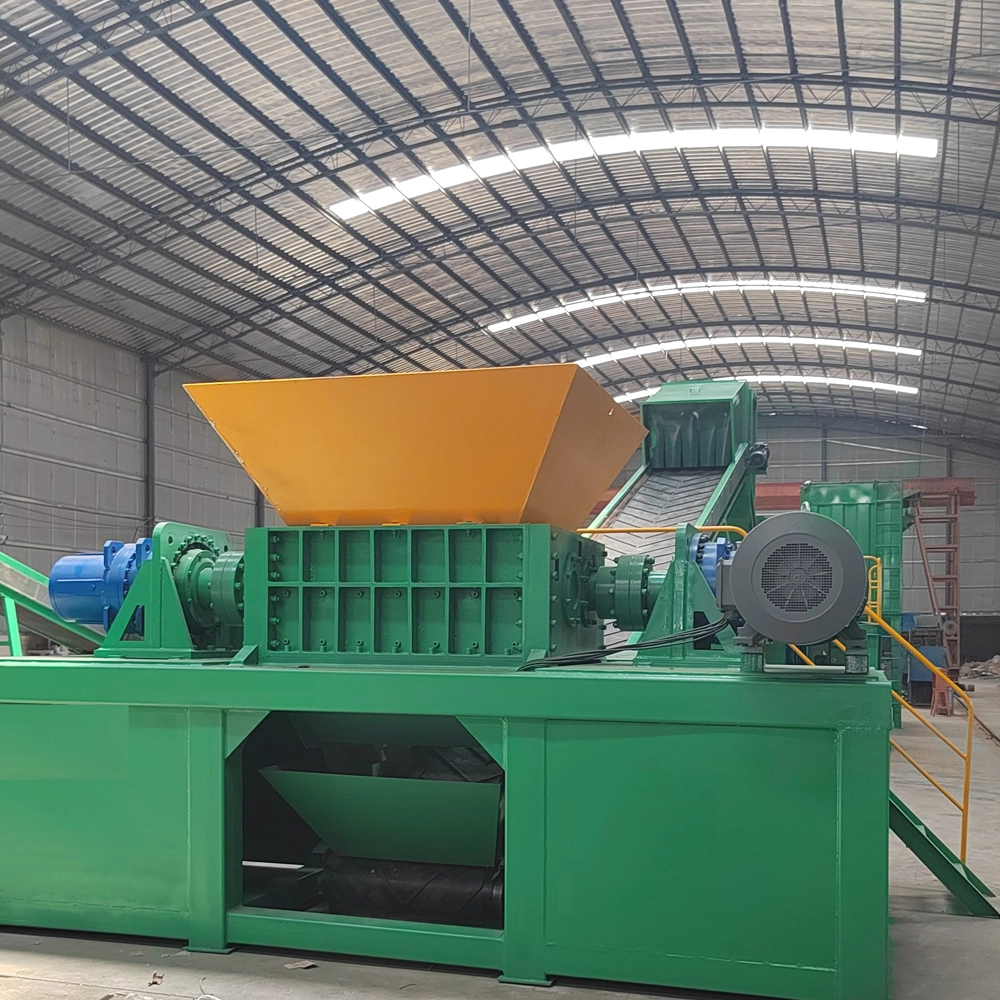

Two Shaft Shredder

Name: Two Shaft Shredder
Brand: Hebei Yuebang Environmental Protection Technology Co., LTD.

This industrial-grade dual shaft shredder for sale features dual counter-rotating shafts with interlocking, carbide-tipped blades for efficient reduction of plastics, metals, wood, and e-waste. Equipped with a 30-70HP motor, it processes up to 1-10 tons/hour at low speeds (10-30 RPM) to minimize noise and energy consumption. The robust steel frame ensures durability, while its modular design allows easy blade replacement and maintenance. Ideal for recycling plants, waste management facilities, and manufacturing industries requiring high-volume, low-cost material destruction. CE-certified with safety interlocks and overload protection. Output particle size customizable via screen inserts.Different machines can be customized according to your needs

Get A Quote

Advantages

Technical Parameters

Applications

Advantages of Two Shaft Shredder

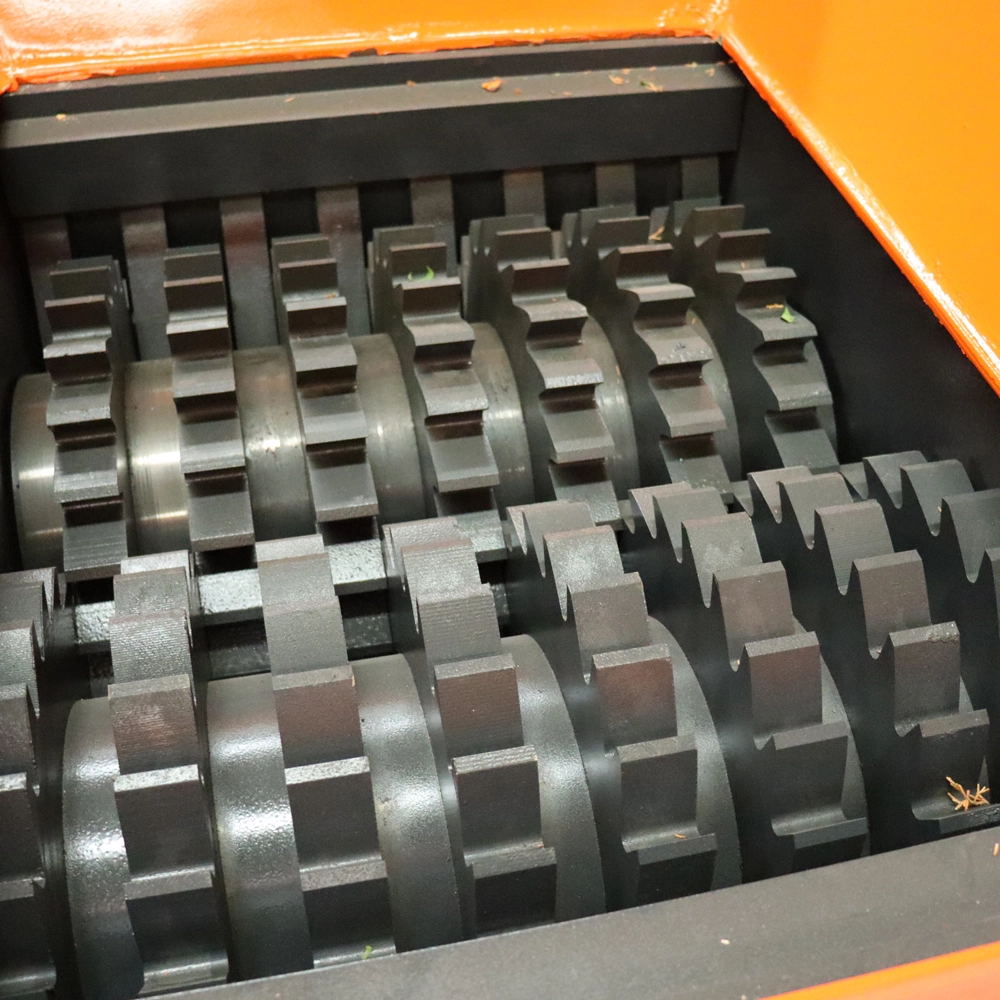

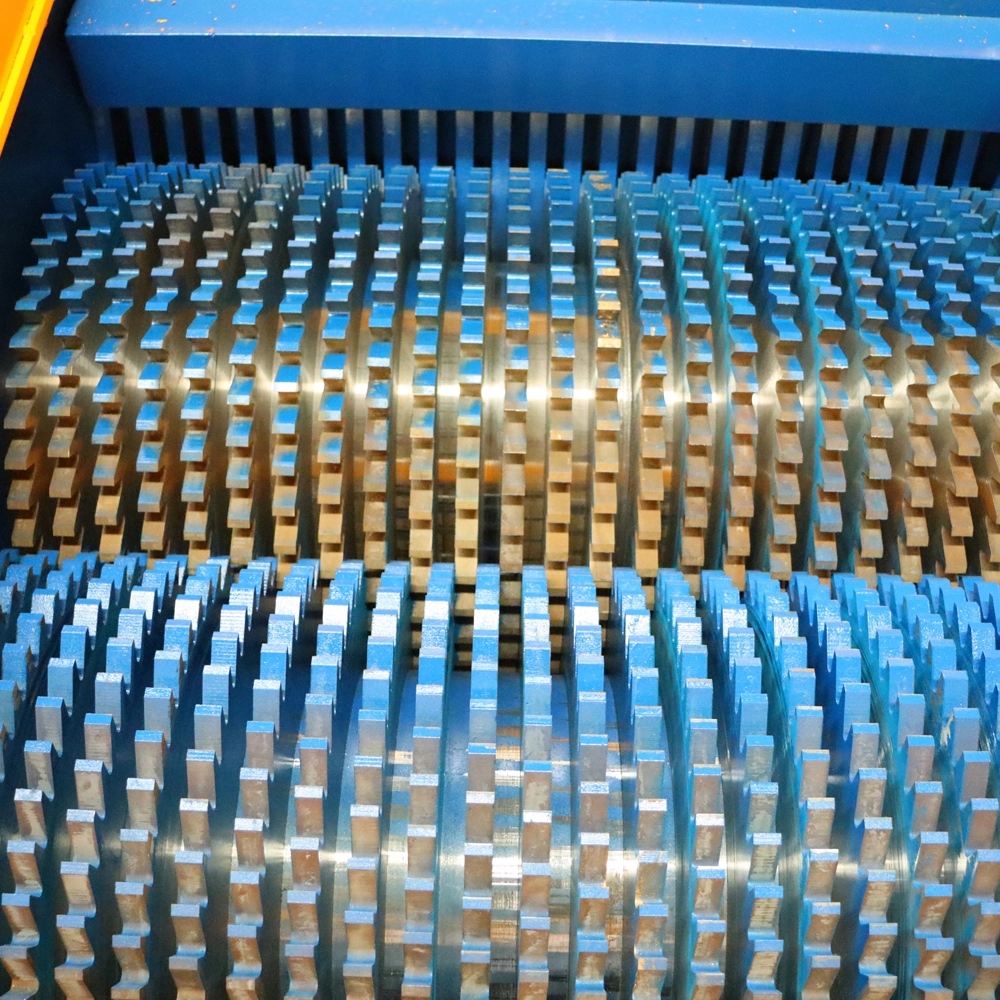

Efficient crushing: dual-axis design, dual-axis shredder using high-strength tungsten carbide alloy blade, can break metal, plastic, wood and other materials. The blade surface of the two shaft shredder is wear-resistant and its life is increased by 30%. The fuselage is welded with Q345B manganese steel, which has strong impact resistance and is suitable for high hardness materials and can handle high hardness and high toughness materials.
Low pollution: Enclosed design reduces dust and noise emissions.
Flexibility: Equipped with a replaceable screen, support custom 0.5-30cm discharge particle size to meet different recycling needs. The tool can be changed to meet different material requirements.
Two-axis shredders play an important role in environmental protection and resource recycling, and are particularly suited for handling complex mixed wastes, contributing to the achievement of the Sustainable Development Goals.

Technical Parameters of Two Shaft Shredder

Model	-	YB-D80	YB-D100	YB-D150	YB-D200
Capcity(t/h)	Metal	1	1.5-2	2.2-2.5	2.5-3
	Non-metal	0.8	1	1.2	2
Diameter of shaft(mm)	-	284	430	500	514
Speed(rpm/m)	-	15	15	15	10-30
Width of blade(mm)	-	20	40	50	50
Quatity of blades(mm)	-	25	25	24	38
Power (kw)	-	45	90	220	440/600
Weight (kg)	-	2400	3000	4000	7000

Applications of Two Shaft Shredder

Two Shaft Shredder is an efficient crushing equipment, widely used in industry, environmental protection, resource recovery and other fields. The following are the main application scenarios:

1. Plastic recycling

Processing materials: waste plastic bottles, plastic films, plastic drums, industrial scraps, etc.

Use: Tear large pieces of plastic into pieces, convenient for subsequent cleaning, melting and regeneration, improve recovery efficiency.

2. Metal waste disposal

Processing materials: scrap metal cans, aluminum foil, iron sheet, auto parts, etc.

Use: Reduce the volume after crushing, easy to transport and melt, improve metal recovery.

3. Electronic waste (E-Waste) treatment

Processing materials: waste mobile phones, computers, circuit boards, wires and cables.

Use: Disassemble and separate metals (such as copper, gold) and non-metallic components to help environmentally friendly recycling and reduce pollution.

4. Medical waste disposal

Processing materials: disposable syringes, infusion bags, medical packaging, etc.

Use: High temperature sterilization or incineration after crushing, to prevent the spread of germs, in line with medical waste treatment standards.

5. Wood and biomass treatment

Processing materials: waste wood, branches, straw, bark, etc.

Uses: Made of wood chips or particles, used in power generation, paper making, organic fertilizer production, etc.

6. Composite material treatment

Processing materials: glass fiber, carbon fiber products, mixed waste (such as car bumpers).

Use: Separate different components after crushing to achieve resource reuse.

7. Construction and decoration waste

Processing materials: concrete blocks, bricks, tiles, wood waste, etc.

Use: As recycled aggregate after crushing for road construction or fill projects.
