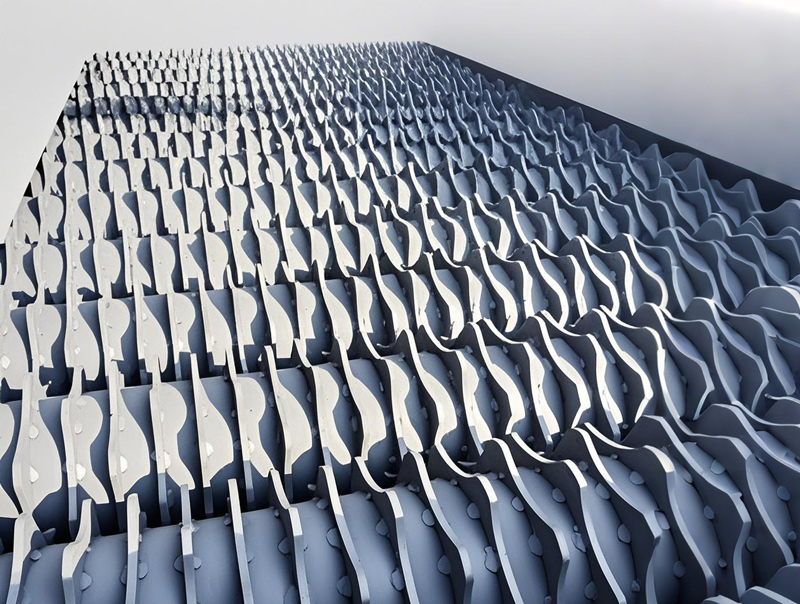

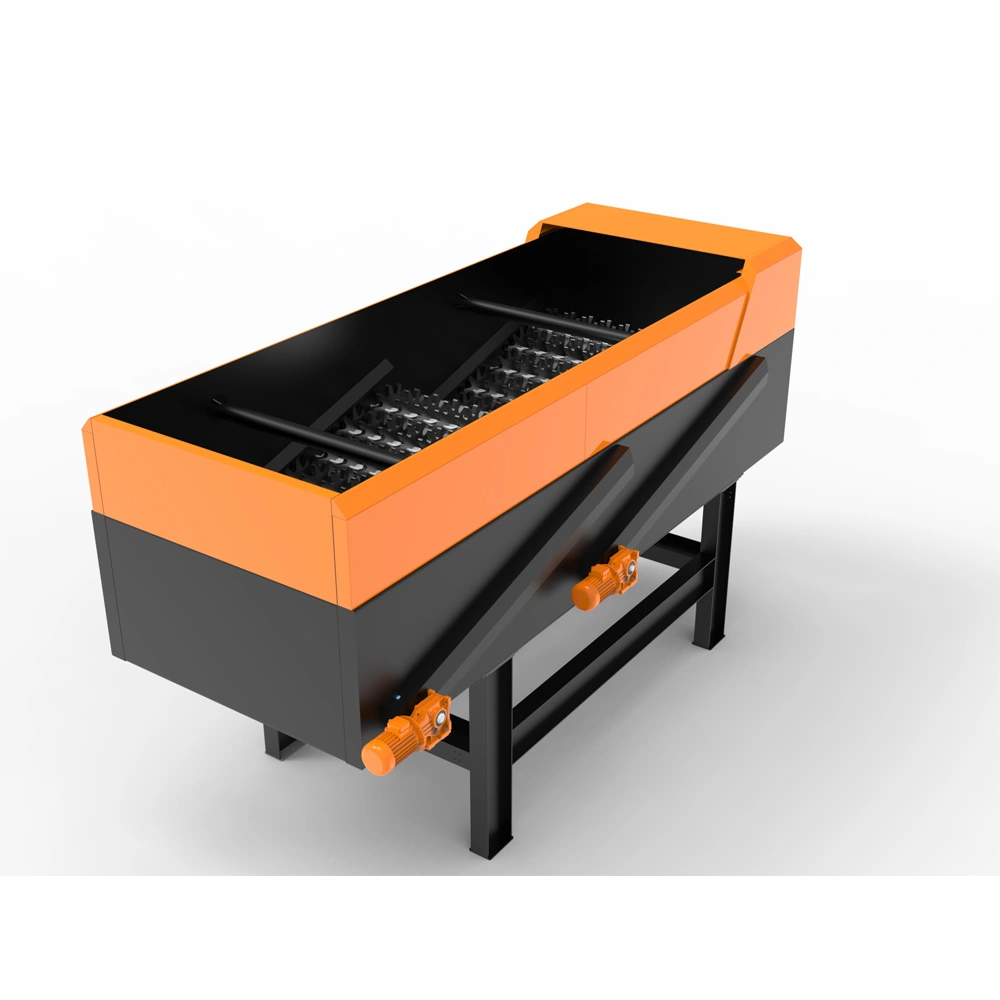

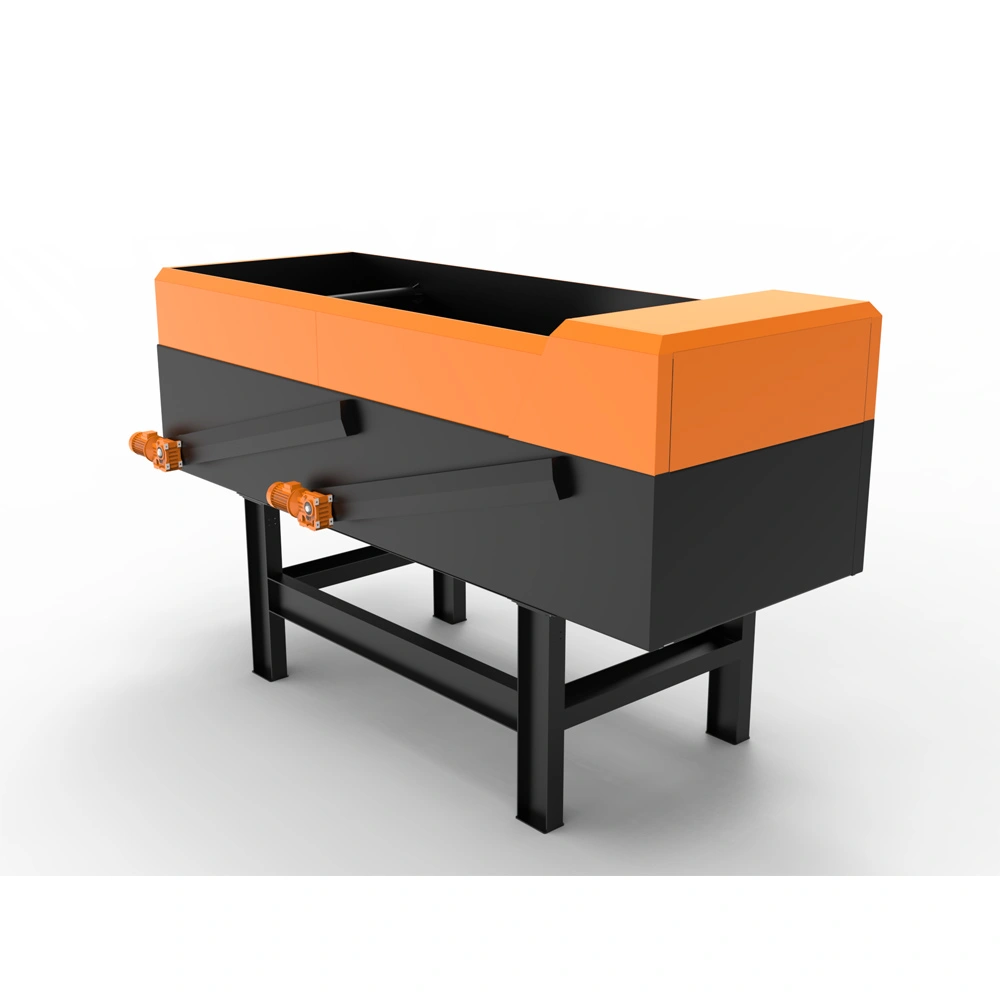

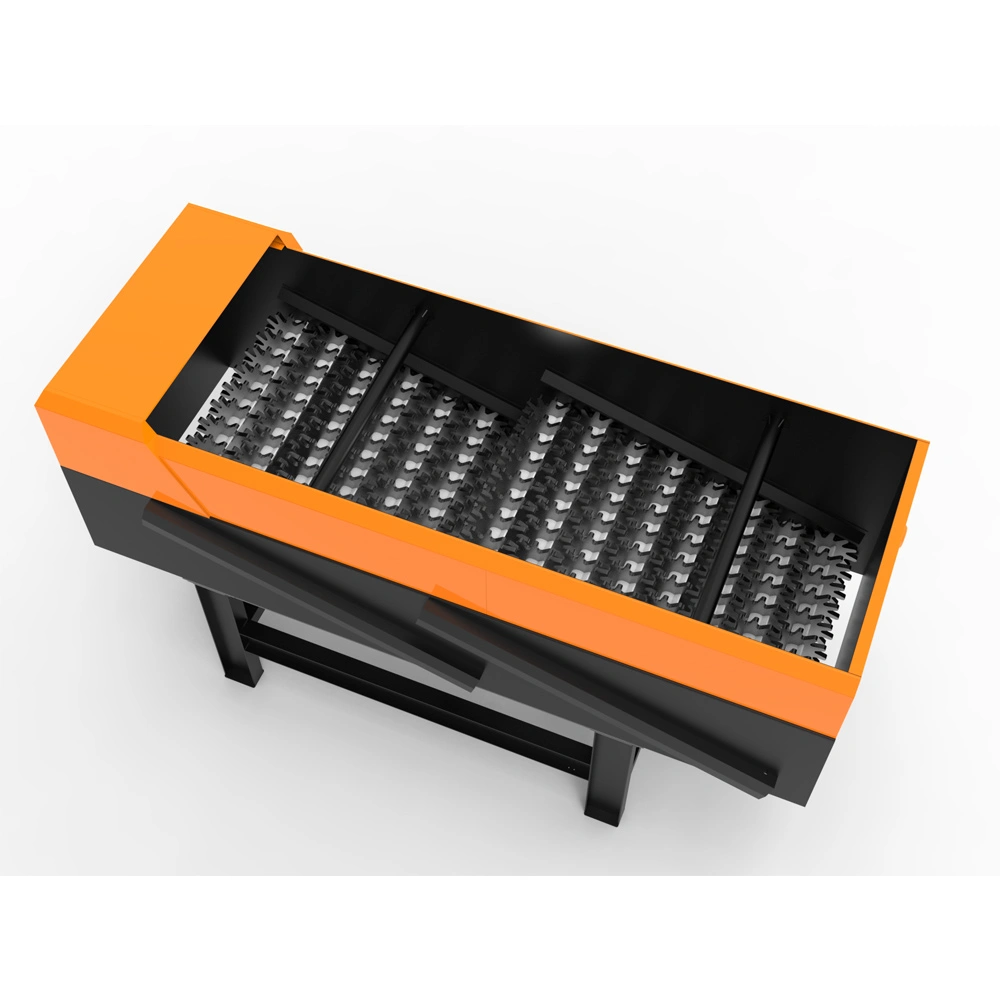

The disc separator can separate the material according to different sizes. It is also called the multi-stage linkage drum screen. It has the characteristics of fast separation speed and no need to add water. The inner side is embedded with a protection plate, the shaft disc is manganese steel casting, long service life, no blocking, no stuck machine, no winding, stable operation.
1. The screen shaft adopts centralized transmission, which has the characteristics of strong power, high shaft synchronization and smooth material operation.
2. The size of the page wheel are made of 50Mn alloy steel castings, long service life.
3. The shaft end is provided with a rubber sealing ring, which has good sealing performance, and the screen body and the connecting surface do not appear dust (particles) leakage phenomenon.
4. The box cover adopts a segmented structure. When replacing and repairing screen shafts, screens and anti-corrosion bushings, simply remove the corresponding seal cover.
5. Two kinds of screening staggered installation, so that the material is sine wave movement, improve the screening capacity of the equipment, so that the screening rate of 95%.
| Model | power (kw) | capacity(t/h) | weight (t) |
| YB1200 | 18.5-30 | 100-300 | 12 |
| YB1500 | 22-37 | 130-350 | 13 |
| YB1800 | 37-45 | 150-500 | 16 |
| YB2000 | 45-55 | 180-600 | 20 |
| YB2200 | 55-75 | 200-700 | 23 |
| YB2500 | 75-90 | 250-800 | 28 |
| YB3000 | 75-110 | 350-1000 | 35 |
To be used to screen small volume of waste impurities, dust powder, combustible and non-combustible waste, so the dish screen is widely used in the waste recycling industry, sorting mixed industrial waste and waste from other recycling plants except sanitary landfills.
